Input thread. More...

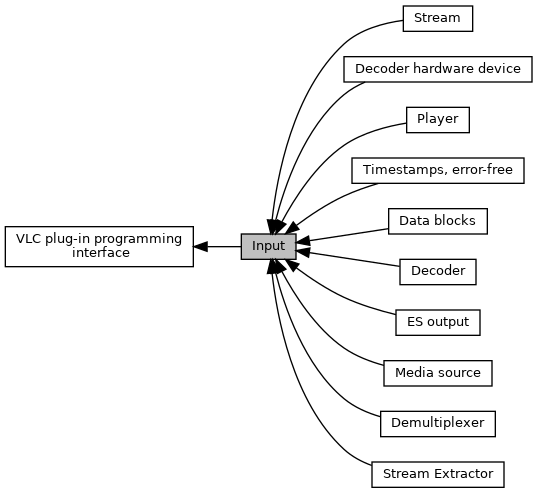

Collaboration diagram for Input:

Modules
	Data blocks
	Blocks of binary data.

	Decoder
	Audio, video and text decoders.

	Decoder hardware device

	Demultiplexer
	Demultiplexers (file format parsers)

	ES output
	Elementary streams output.

	Media source

	Player
	VLC Player API.

	Stream
	Buffered input byte streams.

	Stream Extractor
	If a stream can be viewed as a directory, such as when opening a compressed archive, a stream-extractor is used to get access to the entities inside said stream.

	Timestamps, error-free
	These functions support generating timestamps without long term rounding errors due to sample rate conversions.

Files
file	vlc_input.h
	Input thread interface.

Data Structures
struct	seekpoint_t

struct	input_title_t

struct	input_attachment_t

Macros
#define	INPUT_TITLE_MENU 0x01 /* Menu title */

#define	INPUT_TITLE_INTERACTIVE 0x02 /* Interactive title. Playback position has no meaning. */

#define	INPUT_RATE_MIN 0.03125f
	Input rate. More...

#define	INPUT_RATE_MAX 31.25f
	Maximal rate value. More...

Typedefs
typedef struct input_resource_t	input_resource_t

typedef struct input_title_t	input_title_t

Functions
static seekpoint_t *	vlc_seekpoint_New (void)

static void	vlc_seekpoint_Delete (seekpoint_t *point)

static seekpoint_t *	vlc_seekpoint_Duplicate (const seekpoint_t *src)

static input_title_t *	vlc_input_title_New (void)

static void	vlc_input_title_Delete (input_title_t *t)

static input_title_t *	vlc_input_title_Duplicate (const input_title_t *t)

static void	vlc_input_attachment_Delete (input_attachment_t *a)

static input_attachment_t *	vlc_input_attachment_New (const char psz_name, const char psz_mime, const char psz_description, const void p_data, size_t i_data)

static input_attachment_t *	vlc_input_attachment_Duplicate (const input_attachment_t *a)

Detailed Description

Input thread.

Macro Definition Documentation

◆ INPUT_RATE_MAX

#define INPUT_RATE_MAX 31.25f

Maximal rate value.

Referenced by Control().

◆ INPUT_RATE_MIN

#define INPUT_RATE_MIN 0.03125f

Input rate.

It is an float used by the variable "rate" in the range [INPUT_RATE_MIN, INPUT_RATE_MAX] the default value being 1.f. It represents the ratio of playback speed to nominal speed (bigger is faster). Minimal rate value

Referenced by Control().

◆ INPUT_TITLE_INTERACTIVE

#define INPUT_TITLE_INTERACTIVE 0x02 /* Interactive title. Playback position has no meaning. */

◆ INPUT_TITLE_MENU

#define INPUT_TITLE_MENU 0x01 /* Menu title */

Typedef Documentation

◆ input_resource_t

typedef struct input_resource_t input_resource_t

◆ input_title_t

typedef struct input_title_t input_title_t

Function Documentation

◆ vlc_input_attachment_Delete()

static void vlc_input_attachment_Delete ( input_attachment_t * a )

inlinestatic

References input_attachment_t::p_data, input_attachment_t::psz_description, input_attachment_t::psz_mime, and input_attachment_t::psz_name.

Referenced by accessNewAttachment(), AppendAttachment(), End(), input_ExtractAttachmentAndCacheArt(), InputUpdateMeta(), LoadSlaves(), stream_AttachmentDelete(), and vlc_input_attachment_New().

◆ vlc_input_attachment_Duplicate()

static input_attachment_t* vlc_input_attachment_Duplicate ( const input_attachment_t * a )

inlinestatic

References input_attachment_t::i_data, input_attachment_t::p_data, input_attachment_t::psz_description, input_attachment_t::psz_mime, input_attachment_t::psz_name, and vlc_input_attachment_New().

Referenced by input_GetAttachment(), and input_GetAttachments().

◆ vlc_input_attachment_New()

static input_attachment_t* vlc_input_attachment_New	(	const char *	psz_name,
		const char *	psz_mime,
		const char *	psz_description,
		const void *	p_data,
		size_t	i_data
	)
