picture.c File Reference

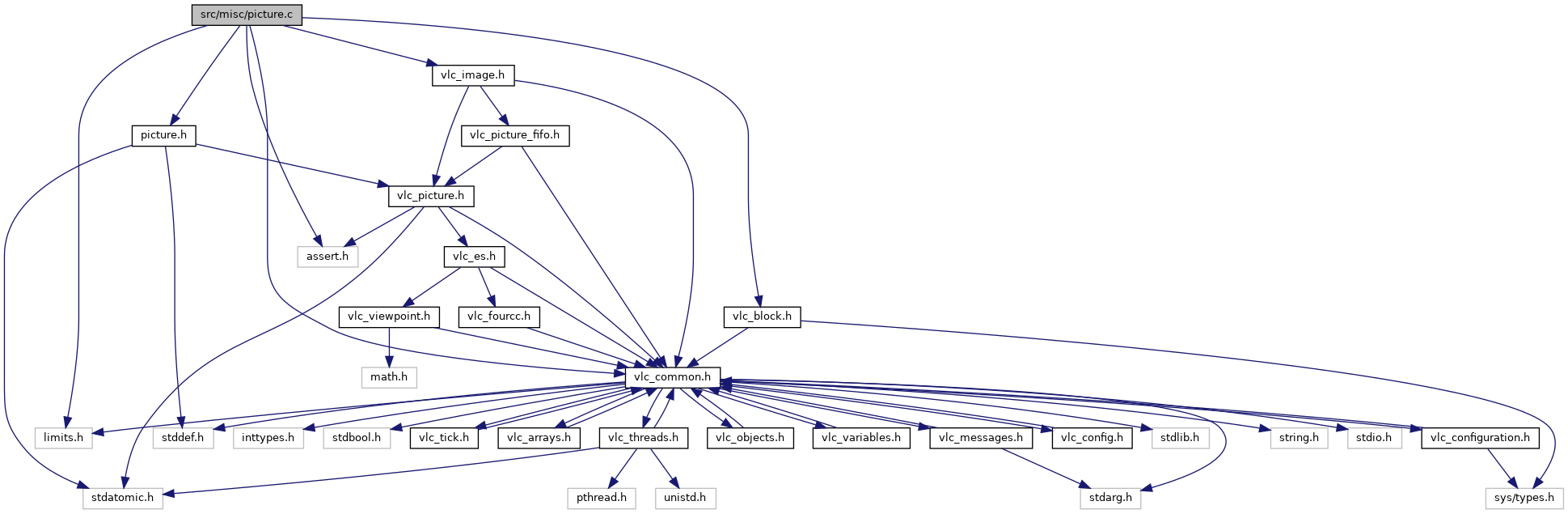

Include dependency graph for picture.c:

Data Structures
struct	picture_priv_buffer_t

Macros
#define	PICTURE_SW_SIZE_MAX   (UINT32_C(1) << 28) /* 256MB: 8K * 8K * 4*/

Functions
static void	PictureDestroyContext (picture_t *p_picture)
static void	picture_DestroyDummy (picture_t *p_picture)
	Destroys a picture allocated by picture_NewFromResource() but without a custom destruction callback. More...
static void	picture_DestroyFromFormat (picture_t *pic)
	Destroys a picture allocated with picture_NewFromFormat(). More...
void *	picture_Allocate (int *restrict fdp, size_t size)
void	picture_Deallocate (int fd, void *base, size_t size)
void	picture_Reset (picture_t *p_picture)
	This function will reset a picture information (properties and quantizers). More...
static int	LCM (int a, int b)
int	picture_Setup (picture_t *p_picture, const video_format_t *restrict fmt)
static bool	picture_InitPrivate (const video_format_t *restrict p_fmt, picture_priv_t *priv, const picture_resource_t *p_resource)
picture_t *	picture_NewFromResource (const video_format_t *p_fmt, const picture_resource_t *p_resource)
	This function will create a new picture using the provided resource. More...
picture_t *	picture_NewFromFormat (const video_format_t *restrict fmt)
picture_t *	picture_New (vlc_fourcc_t i_chroma, int i_width, int i_height, int i_sar_num, int i_sar_den)
	This function will create a new picture. More...
void	picture_Destroy (picture_t *picture)
	Destroys a picture without references. More...
void	plane_CopyPixels (plane_t *p_dst, const plane_t *p_src)
void	picture_CopyProperties (picture_t *p_dst, const picture_t *p_src)
	This function will copy all picture dynamic properties. More...
void	picture_CopyPixels (picture_t *p_dst, const picture_t *p_src)
	This function will copy the picture pixels. More...
void	picture_Copy (picture_t *p_dst, const picture_t *p_src)
	This function will copy both picture dynamic properties and pixels. More...
static void	picture_DestroyClone (picture_t *clone)
picture_t *	picture_InternalClone (picture_t *picture, void(*pf_destroy)(picture_t *), void *opaque)
picture_t *	picture_Clone (picture_t *picture)
	Perform a shallow picture copy. More...
int	picture_Export (vlc_object_t *p_obj, block_t **pp_image, video_format_t *p_fmt, picture_t *p_picture, vlc_fourcc_t i_format, int i_override_width, int i_override_height, bool b_crop)
	This function will export a picture to an encoded bitstream. More...

Macro Definition Documentation

PICTURE_SW_SIZE_MAX

#define PICTURE_SW_SIZE_MAX   (UINT32_C(1) << 28) /* 256MB: 8K * 8K * 4*/

Referenced by picture_NewFromFormat().

Function Documentation

LCM()

static int LCM ( int  a, int  b  )

static

References GCD().

Referenced by picture_Setup().

picture_Allocate()

void* picture_Allocate	(	int *restrict	fdp,
		size_t	size
	)

References aligned_alloc().

Referenced by picture_NewFromFormat().

picture_Clone()

picture_t* picture_Clone

(

picture_t *

pic

)

Perform a shallow picture copy.

This function makes a shallow copy of an existing picture. The same planes and resources will be used, and the cloned picture reference count will be incremented.

Returns

A clone picture on success, NULL on error.

References picture_t::context, picture_context_t::copy, likely, picture_DestroyClone(), and picture_InternalClone().

Referenced by picture_Release(), and vout_snapshot_Set().

picture_Copy()

void picture_Copy	(	picture_t *	p_dst,
		const picture_t *	p_src
	)

This function will copy both picture dynamic properties and pixels.

You have to notice that sometime a simple picture_Hold may do what you want without the copy overhead. Provided for convenience.

Parameters

p_dst	pointer to the destination picture.
p_src	pointer to the source picture.

References picture_CopyPixels(), and picture_CopyProperties().

Referenced by picture_Release(), and ThreadDisplayRenderPicture().

picture_CopyPixels()

void picture_CopyPixels	(	picture_t *	p_dst,
		const picture_t *	p_src
	)

This function will copy the picture pixels.

You can safely copy between pictures that do not have the same size, only the compatible(smaller) part will be copied.

References picture_t::context, picture_context_t::copy, picture_t::i_planes, picture_t::p, and plane_CopyPixels().

Referenced by picture_Copy(), and picture_Release().

picture_CopyProperties()

void picture_CopyProperties	(	picture_t *	p_dst,
		const picture_t *	p_src
	)

This function will copy all picture dynamic properties.

References picture_t::b_force, picture_t::b_progressive, picture_t::b_still, picture_t::b_top_field_first, picture_t::date, and picture_t::i_nb_fields.

Referenced by picture_Copy(), and picture_Release().

picture_Deallocate()

void picture_Deallocate	(	int	fd,
		void *	base,
		size_t	size
	)

Referenced by picture_DestroyFromFormat().

picture_Destroy()

void picture_Destroy

(

picture_t *


)

Destroys a picture without references.

This function destroys a picture with zero references left. Never call this function directly. Use picture_Release() instead.

References container_of, picture_priv_t::destroy, picture_priv_t::gc, PictureDestroyContext(), picture_priv_buffer_t::priv, and picture_t::refs.

Referenced by picture_Release().

picture_DestroyClone()

static void picture_DestroyClone ( picture_t *  clone )

static

References picture_Release().

Referenced by picture_Clone().

picture_DestroyDummy()

static void picture_DestroyDummy ( picture_t *  p_picture )

static

Destroys a picture allocated by picture_NewFromResource() but without a custom destruction callback.

Referenced by picture_InitPrivate().

picture_DestroyFromFormat()

static void picture_DestroyFromFormat ( picture_t *  pic )

static

Destroys a picture allocated with picture_NewFromFormat().

References picture_buffer_t::base, picture_buffer_t::fd, picture_t::p_sys, picture_Deallocate(), and picture_buffer_t::size.

Referenced by picture_NewFromFormat().

picture_Export()

int picture_Export	(	vlc_object_t *	p_obj,
		block_t **	pp_image,
		video_format_t *	p_fmt,
		picture_t *	p_picture,
		vlc_fourcc_t	i_format,
		int	i_override_width,
		int	i_override_height,
		bool	b_crop
	)

This function will export a picture to an encoded bitstream.

pp_image will contain the encoded bitstream in psz_format format.

p_fmt can be NULL otherwise it will be set with the format used for the picture before encoding.

i_override_width/height allow to override the width and/or the height of the picture to be encoded:

• if strictly lower than 0, the original dimension will be used.
• if equal to 0, it will be deduced from the other dimension which must be different to 0.
• if strictly higher than 0, it will either override the dimension if b_crop is false, or crop the picture to the provided size if b_crop is true. If at most one of them is > 0 then the picture aspect ratio will be kept.

References picture_t::date, picture_t::format, video_format_t::i_chroma, block_t::i_dts, video_format_t::i_height, block_t::i_pts, video_format_t::i_sar_den, video_format_t::i_sar_num, video_format_t::i_visible_height, video_format_t::i_visible_width, video_format_t::i_width, video_format_t::i_x_offset, video_format_t::i_y_offset, image_HandlerCreate, image_HandlerDelete(), image_Write, VLC_EGENERIC, VLC_ENOMEM, and VLC_SUCCESS.

Referenced by picture_Release(), and vout_GetSnapshot().

picture_InitPrivate()

static bool picture_InitPrivate ( const video_format_t *restrict  p_fmt, picture_priv_t *  priv, const picture_resource_t *  p_resource  )

static

References picture_t::date, picture_priv_t::destroy, picture_t::format, picture_priv_t::gc, picture_priv_t::opaque, picture_t::p_sys, picture_resource_t::p_sys, picture_resource_t::pf_destroy, picture_priv_t::picture, picture_DestroyDummy(), picture_Setup(), picture_t::refs, and VLC_TICK_INVALID.

Referenced by picture_NewFromFormat(), and picture_NewFromResource().

picture_InternalClone()

picture_t* picture_InternalClone	(	picture_t *	picture,
		void(*)(picture_t *)	pf_destroy,
		void *	opaque
	)

References picture_t::format, plane_t::i_lines, picture_resource_t::i_lines, plane_t::i_pitch, picture_resource_t::i_pitch, picture_t::i_planes, likely, picture_t::p, picture_resource_t::p, plane_t::p_pixels, picture_resource_t::p_pixels, picture_t::p_sys, picture_Hold(), picture_NewFromResource(), and picture_priv_buffer_t::res.

Referenced by picture_Clone(), and picture_pool_ClonePicture().

picture_New()

picture_t* picture_New	(	vlc_fourcc_t	i_chroma,
		int	i_width,
		int	i_height,
		int	i_sar_num,
		int	i_sar_den
	)

This function will create a new picture.

The picture created will implement a default release management compatible with picture_Hold and picture_Release. This default management will release p_sys, gc.p_sys fields if non NULL.

References picture_NewFromFormat(), video_format_Init(), and video_format_Setup().

Referenced by picture_GetVideoContext().

picture_NewFromFormat()

picture_t* picture_NewFromFormat

(

const video_format_t *restrict

fmt

)

References add_overflow, picture_buffer_t::base, picture_buffer_t::fd, plane_t::i_lines, plane_t::i_pitch, picture_t::i_planes, mul_overflow, picture_buffer_t::offset, picture_t::p, p, plane_t::p_pixels, picture_t::p_sys, picture_resource_t::p_sys, picture_priv_t::picture, picture_Allocate(), picture_DestroyFromFormat(), picture_InitPrivate(), PICTURE_PLANE_MAX, PICTURE_SW_SIZE_MAX, picture_priv_buffer_t::priv, picture_priv_buffer_t::res, picture_buffer_t::size, static_assert, and unlikely.

Referenced by decoder_NewPicture(), filter_NewPicture(), picture_New(), picture_pool_NewFromFormat(), subpicture_region_New(), thumbnailer_buffer_new(), video_splitter_NewPicture(), and VoutVideoFilterStaticNewPicture().

picture_NewFromResource()

picture_t* picture_NewFromResource	(	const video_format_t *	,
		const picture_resource_t *
	)

This function will create a new picture using the provided resource.

If the resource is NULL then a plain picture_NewFromFormat is returned.

References plane_t::i_lines, picture_resource_t::i_lines, plane_t::i_pitch, picture_resource_t::i_pitch, picture_t::i_planes, picture_t::p, picture_resource_t::p, plane_t::p_pixels, picture_resource_t::p_pixels, picture_priv_t::picture, picture_InitPrivate(), and unlikely.

Referenced by picture_InternalClone().

picture_Reset()

void picture_Reset

(

picture_t *

)

This function will reset a picture information (properties and quantizers).

It is sometimes useful for reusing pictures (like from a pool).

References picture_t::b_force, picture_t::b_progressive, picture_t::b_still, picture_t::b_top_field_first, picture_t::date, picture_t::i_nb_fields, PictureDestroyContext(), and VLC_TICK_INVALID.

Referenced by ModuleThread_NewVideoBuffer(), picture_Release(), vout_GetPicture(), and VoutVideoFilterInteractiveNewPicture().

picture_Setup()

int picture_Setup	(	picture_t *	p_picture,
		const video_format_t *restrict	fmt
	)

References add_overflow, ARRAY_SIZE, vlc_rational_t::den, picture_t::format, vlc_chroma_description_t::h, video_format_t::i_chroma, plane_t::i_lines, picture_t::i_nb_fields, plane_t::i_pitch, plane_t::i_pixel_pitch, picture_t::i_planes, plane_t::i_visible_lines, plane_t::i_visible_pitch, LCM(), vlc_rational_t::num, picture_t::p, p, vlc_chroma_description_t::p, plane_t::p_pixels, vlc_chroma_description_t::pixel_size, vlc_chroma_description_t::plane_count, unlikely, video_format_CopyCrop(), video_format_Setup(), VLC_EGENERIC, vlc_fourcc_GetChromaDescription(), VLC_SUCCESS, and vlc_chroma_description_t::w.

Referenced by picture_InitPrivate().

PictureDestroyContext()

static void PictureDestroyContext ( picture_t *  p_picture )

static

References picture_t::context, picture_context_t::destroy, picture_context_t::vctx, and vlc_video_context_Release().

Referenced by picture_Destroy(), and picture_Reset().

plane_CopyPixels()

void plane_CopyPixels	(	plane_t *	p_dst,
		const plane_t *	p_src
	)

References plane_t::i_pitch, plane_t::i_visible_lines, plane_t::i_visible_pitch, and plane_t::p_pixels.

Referenced by picture_CopyPixels(), and picture_Release().
