vout_window_t Struct Reference

Window object. More...

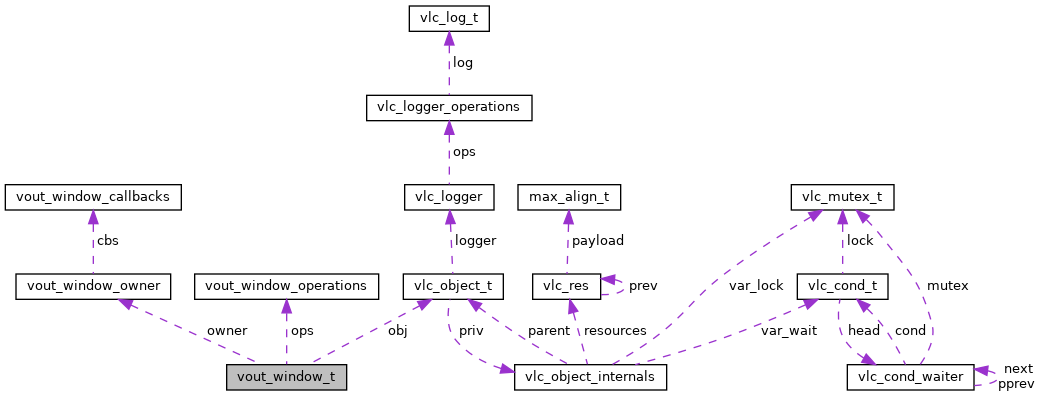

Collaboration diagram for vout_window_t:

Data Fields
struct vlc_object_t	obj
unsigned	type
	Window handle type. More...
union {
void *   hwnd
	Win32 window handle. More...
uint32_t   xid
	X11 windows ID. More...
void *   nsobject
	macOS/iOS view object More...
void *   anativewindow
	Android native window. More...
struct wl_surface *   wl
	Wayland surface (client pointer) More...
}	handle
	Window handle (mandatory) More...
union {
char *   x11
	X11 display string (NULL = use default) More...
struct wl_display *   wl
	Wayland display (client pointer) More...
}	display
	Display server (mandatory) More...
const struct vout_window_operations *	ops
	operations handled by the window. More...
struct {
bool   has_double_click
	Whether double click events are sent, or need to be emulated. More...
}	info
void *	sys
vout_window_owner_t	owner

Detailed Description

Window object.

This structure is an abstract interface to the windowing system. The window is normally used to draw video (and subpictures) into, but it can also be used for other purpose (e.g. OpenGL visualization).

The window is responsible for providing a window handle, whose exact meaning depends on the windowing system. It also must report some events such as user input (keyboard, mouse) and window resize.

Finally, it must support some control requests such as for fullscreen mode.

Field Documentation

anativewindow

void* vout_window_t::anativewindow

Android native window.

display

union { ... } vout_window_t::display

Display server (mandatory)

This must be filled by the plugin upon activation.

The window handle is relative to the display server. The exact meaning of the display server depends on the window handle type. Not all window handle type provide a display server field.

Referenced by vlc_gl_surface_Create().

handle

union { ... } vout_window_t::handle

Window handle (mandatory)

This must be filled by the plugin upon succesful vout_window_Enable().

Depending on the type above, a different member of this union is used.

Referenced by vout_window_New().

has_double_click

bool vout_window_t::has_double_click

Whether double click events are sent, or need to be emulated.

Referenced by vout_display_window_MouseEvent(), and vout_window_New().

hwnd

void* vout_window_t::hwnd

Win32 window handle.

info

struct { ... } vout_window_t::info

Referenced by vout_display_window_MouseEvent(), and vout_window_New().

nsobject

void* vout_window_t::nsobject

macOS/iOS view object

obj

struct vlc_object_t vout_window_t::obj

ops

const struct vout_window_operations* vout_window_t::ops

operations handled by the window.

Once this is set it MUST NOT be changed

Referenced by vout_window_Delete(), vout_window_Disable(), vout_window_Enable(), vout_window_SetFullScreen(), vout_window_SetSize(), vout_window_SetState(), vout_window_SetTitle(), and vout_window_UnsetFullScreen().

owner

vout_window_owner_t vout_window_t::owner

Referenced by vlc_gl_surface_CheckSize(), vlc_gl_surface_Destroy(), vlc_gl_surface_ResizeNotify(), vout_display_window_Delete(), vout_display_window_FullscreenNotify(), vout_display_window_MouseEvent(), vout_display_window_ResizeNotify(), vout_display_window_StateNotify(), vout_display_window_WindowingNotify(), vout_window_New(), vout_window_ReportClose(), vout_window_ReportFullscreen(), vout_window_ReportKeyPress(), vout_window_ReportOutputDevice(), vout_window_ReportSize(), vout_window_ReportState(), vout_window_ReportWindowed(), and vout_window_SendMouseEvent().

sys

void* vout_window_t::sys

Referenced by vout_window_New().

type

unsigned vout_window_t::type

Window handle type.

This identified the windowing system and protocol that the window needs to use. This also selects which member of the handle union and the display union are to be set.

The possible values are defined in vout_window_type.

Referenced by vout_display_cfg_IsWindowed().

wl [1/2]

struct wl_surface* vout_window_t::wl

Wayland surface (client pointer)

wl [2/2]

struct wl_display* vout_window_t::wl

Wayland display (client pointer)

x11

char* vout_window_t::x11

X11 display string (NULL = use default)

xid

uint32_t vout_window_t::xid

X11 windows ID.

---

The documentation for this struct was generated from the following file:

• include/vlc_vout_window.h
