libvlc.h File Reference

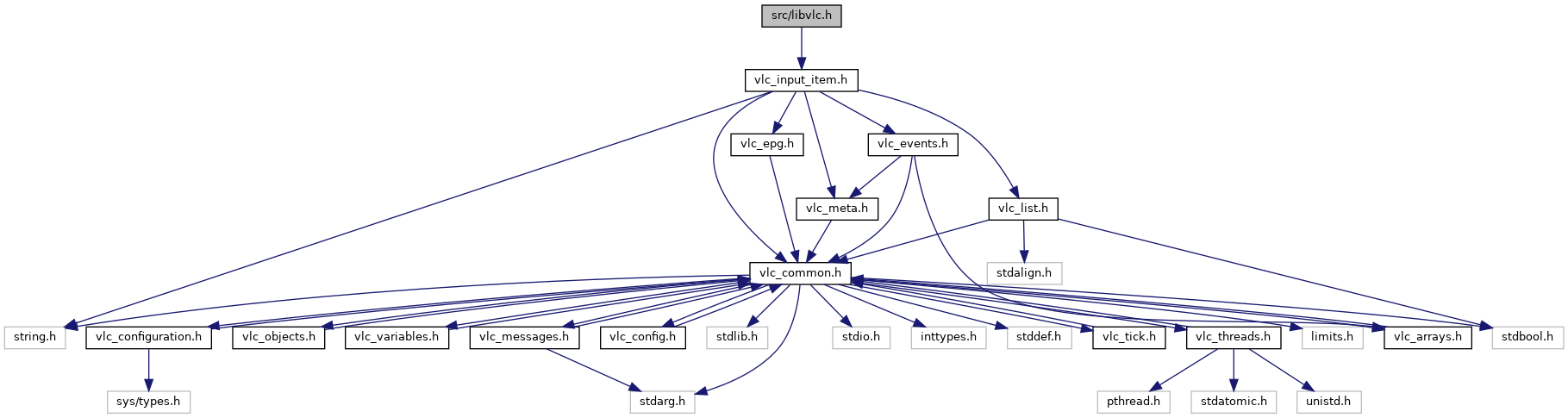

Include dependency graph for libvlc.h:

Go to the source code of this file.

Data Structures
struct	vlc_exit
struct	libvlc_priv_t

Macros
#define	vlc_backtrace()   vlc_trace(__func__, __FILE__, __LINE__)
#define	vlc_custom_create(o, s, n)   vlc_custom_create(VLC_OBJECT(o), s, n)
#define	ZOOM_SECTION   N_("Zoom")
#define	ZOOM_QUARTER_KEY_TEXT   N_("1:4 Quarter")
#define	ZOOM_HALF_KEY_TEXT   N_("1:2 Half")
#define	ZOOM_ORIGINAL_KEY_TEXT   N_("1:1 Original")
#define	ZOOM_DOUBLE_KEY_TEXT   N_("2:1 Double")

Typedefs
typedef struct variable_t	variable_t
typedef struct vlc_logger	vlc_logger_t
typedef struct vlc_exit	vlc_exit_t
typedef struct vlc_dialog_provider	vlc_dialog_provider
	Private LibVLC instance data. More...
typedef struct vlc_keystore	vlc_keystore
typedef struct vlc_actions_t	vlc_actions_t
typedef struct vlc_playlist	vlc_playlist_t
typedef struct vlc_media_source_provider_t	vlc_media_source_provider_t
typedef struct intf_thread_t	intf_thread_t
typedef struct libvlc_priv_t	libvlc_priv_t

Functions
void	system_Init (void)
	Initializes MME timer, Winsock. More...
void	system_Configure (libvlc_int_t *, int, const char *const [])
void	vlc_CPU_dump (vlc_object_t *)
int	vlc_clone_detach (vlc_thread_t *, void *(*)(void *), void *, int)
int	vlc_set_priority (vlc_thread_t, int)
void	vlc_threads_setup (libvlc_int_t *)
void	vlc_trace (const char *fn, const char *file, unsigned line)
	Print a backtrace to the standard error for debugging purpose. More...
int	vlc_LogPreinit (libvlc_int_t *)
	Performs preinitialization of the messages logging subsystem. More...
void	vlc_LogInit (libvlc_int_t *)
	Initializes the messages logging subsystem and drain the early messages to the configured log. More...
void	vlc_ExitInit (vlc_exit_t *)
int	vlc_object_init (vlc_object_t *obj, vlc_object_t *parent, const char *type_name)
	Initializes a VLC object. More...
void	vlc_object_deinit (vlc_object_t *obj)
	Deinitializes a VLC object. More...
void *	vlc_custom_create (vlc_object_t *p_this, size_t i_size, const char *psz_type)
	Creates a VLC object. More...
void *	vlc_objres_new (size_t size, void(*release)(void *))
	Allocates an object resource. More...
void	vlc_objres_push (vlc_object_t *obj, void *data)
	Pushes an object resource on the object resources stack. More...
void	vlc_objres_clear (vlc_object_t *obj)
	Releases all resources of an object. More...
void	vlc_objres_remove (vlc_object_t *obj, void *data, bool(*match)(void *, void *))
	Releases one object resource explicitly. More...
static libvlc_priv_t *	libvlc_priv (libvlc_int_t *libvlc)
int	intf_InsertItem (libvlc_int_t *, const char *mrl, unsigned optc, const char *const *optv, unsigned flags)
	Inserts an item in the playlist. More...
void	intf_DestroyAll (libvlc_int_t *)
	Stops and destroys all interfaces, then the playlist. More...
int	vlc_MetadataRequest (libvlc_int_t *libvlc, input_item_t *item, input_item_meta_request_option_t i_options, const input_preparser_callbacks_t *cbs, void *cbs_userdata, int timeout, void *id)
void	var_OptionParse (vlc_object_t *, const char *, bool trusted)
	Parse a stringified option This function parse a string option and create the associated object variable The option must be of the form "[no[-]]foo[=bar]" where foo is the option name and bar is the value of the option. More...

Variables
const char	psz_vlc_changeset []

Macro Definition Documentation

vlc_backtrace

#define vlc_backtrace

(

)

vlc_trace(__func__, __FILE__, __LINE__)

vlc_custom_create

#define vlc_custom_create	(		o,
			s,
			n
	)		vlc_custom_create(VLC_OBJECT(o), s, n)

Referenced by addons_manager_WriteCatalog(), aout_New(), aout_volume_New(), Create(), CreateConverter(), CreateDecoder(), CreateFilter(), CreateObject(), demux_PacketizerNew(), filter_chain_AppendInner(), filter_NewBlend(), FinderThread(), fingerprinter_Create(), httpd_HostCreate(), input_item_WriteMeta(), InputSourceMeta(), installOrRemoveAddon(), intf_Create(), InvokeModule(), keystore_create(), libvlc_InternalCreate(), libvlc_MlCreate(), LoadLocalStorage(), sout_AccessOutNew(), sout_EncoderCreate(), sout_MuxNew(), sout_NewInstance(), sout_StreamNew(), spu_Create(), SpuRenderCreateAndLoadScale(), SpuRenderCreateAndLoadText(), StreamExtractorAttach(), update_Download(), video_splitter_New(), vlc_gl_Create(), vlc_inhibit_Create(), vlc_LogModuleCreate(), vlc_player_New(), vlc_playlist_Export(), vlc_probe(), vlc_rd_new(), vlc_sd_Create(), vlc_stream_CustomNew(), vlc_tls_ClientCreate(), vlc_tls_ServerCreate(), vlm_ControlMediaAdd(), vlm_New(), vout_CreateCommon(), vout_display_New(), vout_window_New(), xml_Create(), and xml_ReaderCreate().

ZOOM_DOUBLE_KEY_TEXT

#define ZOOM_DOUBLE_KEY_TEXT   N_("2:1 Double")

ZOOM_HALF_KEY_TEXT

#define ZOOM_HALF_KEY_TEXT   N_("1:2 Half")

ZOOM_ORIGINAL_KEY_TEXT

#define ZOOM_ORIGINAL_KEY_TEXT   N_("1:1 Original")

ZOOM_QUARTER_KEY_TEXT

#define ZOOM_QUARTER_KEY_TEXT   N_("1:4 Quarter")

ZOOM_SECTION

#define ZOOM_SECTION   N_("Zoom")

Typedef Documentation

intf_thread_t

typedef struct intf_thread_t intf_thread_t

libvlc_priv_t

typedef struct libvlc_priv_t libvlc_priv_t

variable_t

typedef struct variable_t variable_t

vlc_actions_t

typedef struct vlc_actions_t vlc_actions_t

vlc_dialog_provider

typedef struct vlc_dialog_provider vlc_dialog_provider

Private LibVLC instance data.

vlc_exit_t

typedef struct vlc_exit vlc_exit_t

vlc_keystore

typedef struct vlc_keystore vlc_keystore

vlc_logger_t

typedef struct vlc_logger vlc_logger_t

vlc_media_source_provider_t

typedef struct vlc_media_source_provider_t vlc_media_source_provider_t

vlc_playlist_t

typedef struct vlc_playlist vlc_playlist_t

Function Documentation

intf_DestroyAll()

void intf_DestroyAll

(

libvlc_int_t *

libvlc

)

Stops and destroys all interfaces, then the playlist.

Warning

FIXME

Parameters

libvlc

the LibVLC instance

References AddIntfCallback(), config_ChainDestroy(), libvlc_priv_t::interfaces, libvlc_priv(), libvlc_priv_t::lock, module_unneed, intf_thread_t::p_cfg, intf_thread_t::p_module, intf_thread_t::p_next, var_DelCallback(), vlc_mutex_lock(), vlc_mutex_unlock(), and vlc_object_delete.

Referenced by libvlc_InternalCleanup(), and libvlc_priv().

intf_InsertItem()

int intf_InsertItem	(	libvlc_int_t *	libvlc,
		const char *	mrl,
		unsigned	optc,
		const char *const *	optv,
		unsigned	flags
	)

Inserts an item in the playlist.

This function is used during initialization. It inserts an item to the beginning of the playlist. That is meant to compensate for the reverse parsing order of the command line.

References input_item_AddOptions(), input_item_New, input_item_Release(), libvlc_GetMainPlaylist(), unlikely, vlc_playlist_InsertOne(), vlc_playlist_Lock(), vlc_playlist_Unlock(), and VLC_SUCCESS.

Referenced by GetFilenames(), libvlc_InternalInit(), and libvlc_priv().

libvlc_priv()

static libvlc_priv_t* libvlc_priv ( libvlc_int_t *  libvlc )

inlinestatic

References container_of, intf_DestroyAll(), intf_InsertItem(), var_OptionParse(), and vlc_MetadataRequest().

Referenced by get_dialog_provider(), get_memory_keystore(), intf_Create(), intf_DestroyAll(), IPCHelperThread(), libvlc_ArtRequest(), libvlc_GetMainPlaylist(), libvlc_InternalActionsClean(), libvlc_InternalActionsInit(), libvlc_InternalCleanup(), libvlc_InternalCreate(), libvlc_InternalDialogClean(), libvlc_InternalDialogInit(), libvlc_InternalInit(), libvlc_InternalKeystoreClean(), libvlc_InternalKeystoreInit(), libvlc_MetadataCancel(), libvlc_MetadataRequest(), libvlc_Quit(), libvlc_SetExitHandler(), player_on_state_changed(), vlc_actions_get_key_names(), vlc_media_source_provider_Get(), vlc_MetadataRequest(), vlc_ml_instance_get(), vlm_Delete(), and vlm_New().

system_Configure()

void system_Configure	(	libvlc_int_t *	,
		int	,
		const char *	const[]
	)

References vlc_ipc_data_t::argc, vlc_ipc_data_t::data, vlc_ipc_data_t::enqueue, hpipeIPC, IPC_CMD_ENQUEUE, IPC_CMD_GO, IPCHelperThread(), libvlc_InternalAddIntf(), msg_Dbg, msg_Err, msg_Info, s_jvm, strdup(), system_ConfigureDbus(), system_End(), tidIPCFirst, tidIPCHelper, var_Create(), var_InheritBool(), var_SetAddress(), VLC_IPC_PIPE, vlc_path2uri(), and VLC_VAR_ADDRESS.

Referenced by libvlc_InternalInit().

system_Init()

void system_Init

(

void

)

Initializes MME timer, Winsock.

References _fmode_bin, getenv(), setenv(), and system_InitWSA().

Referenced by config_GetBaseDir(), and libvlc_InternalInit().

var_OptionParse()

void var_OptionParse	(	vlc_object_t *	p_obj,
		const char *	psz_option,
		bool	trusted
	)

Parse a stringified option This function parse a string option and create the associated object variable The option must be of the form "[no[-]]foo[=bar]" where foo is the option name and bar is the value of the option.

Parameters

p_obj	the object in which the variable must be created
psz_option	the option to parse
trusted	whether the option is set by a trusted input or not

Returns

nothing

References vlc_value_t::b_bool, config_GetType(), config_IsSafe(), vlc_value_t::f_float, vlc_value_t::i_int, i_type, msg_Err, psz_name, vlc_value_t::psz_string, psz_value, strcasecmp(), strdup(), strtoll(), us_atof(), var_Create(), var_Set(), VLC_VAR_BOOL, VLC_VAR_FLOAT, VLC_VAR_INTEGER, and VLC_VAR_STRING.

Referenced by input_item_ApplyOptions(), libvlc_priv(), and var_LocationParse().

vlc_clone_detach()

int vlc_clone_detach	(	vlc_thread_t *	,
		void *	*)(void *,
		void *	,
		int
	)

vlc_CPU_dump()

void vlc_CPU_dump

(

vlc_object_t *

)

References msg_Dbg, vlc_memstream::ptr, vlc_memstream_close(), vlc_memstream_open(), and vlc_memstream_puts().

Referenced by libvlc_InternalInit().

vlc_custom_create()

void* vlc_custom_create	(	vlc_object_t *	p_this,
		size_t	i_size,
		const char *	psz_type
	)

Creates a VLC object.

Note that because the object name pointer must remain valid, potentially even after the destruction of the object (through the message queues), this function CANNOT be exported to plugins as is. In this case, the old vlc_object_create() must be used instead.

Parameters

p_this	an existing VLC object
i_size	byte size of the object structure
psz_type	object type name

Returns

the created object, or NULL.

References unlikely, and vlc_object_init().

Referenced by vlc_object_create().

vlc_ExitInit()

void vlc_ExitInit

(

vlc_exit_t *

)

References vlc_exit::handler, vlc_exit::lock, vlc_exit::opaque, and vlc_mutex_init().

Referenced by libvlc_InternalCreate().

vlc_LogInit()

void vlc_LogInit

(

libvlc_int_t *

)

Initializes the messages logging subsystem and drain the early messages to the configured log.

References discard_log, vlc_object_t::logger, libvlc_int_t::obj, vlc_LogModuleCreate(), vlc_LogSwitch(), and VLC_OBJECT.

Referenced by libvlc_InternalInit().

vlc_LogPreinit()

int vlc_LogPreinit

(

libvlc_int_t *

vlc

)

Performs preinitialization of the messages logging subsystem.

Early log messages will be stored in memory until the subsystem is fully initialized with vlc_LogInit(). This enables logging before the configuration and modules bank are ready.

Returns

0 on success, -1 on error.

References vlc_object_t::logger, libvlc_int_t::obj, unlikely, vlc_LogEarlyOpen(), vlc_LogSpam(), vlc_LogSwitch(), vlc_LogSwitchCreate(), and VLC_OBJECT.

Referenced by libvlc_InternalInit().

vlc_MetadataRequest()

int vlc_MetadataRequest	(	libvlc_int_t *	libvlc,
		input_item_t *	item,
		input_item_meta_request_option_t	i_options,
		const input_preparser_callbacks_t *	cbs,
		void *	cbs_userdata,
		int	timeout,
		void *	id
	)

References input_preparser_Push(), libvlc_priv(), libvlc_priv_t::parser, unlikely, VLC_ENOMEM, and VLC_SUCCESS.

Referenced by libvlc_MetadataRequest(), libvlc_priv(), vlc_media_tree_Preparse(), and vlc_playlist_Preparse().

vlc_object_deinit()

void vlc_object_deinit

(

vlc_object_t *

obj

)

Deinitializes a VLC object.

This frees resources allocated by vlc_object_init().

References vlc_object_internals::resources, var_DestroyAll(), vlc_internals, vlc_restorecancel(), and vlc_savecancel().

Referenced by vlc_object_delete().

vlc_object_init()

int vlc_object_init	(	vlc_object_t *	obj,
		vlc_object_t *	parent,
		const char *	type_name
	)

Initializes a VLC object.

Parameters

obj	storage space for object to initialize [OUT]
parent	parent object (or NULL to initialize the root) [IN]
type_name	object type name

Note

The type name pointer must remain valid even after the object is deinitialized, as it might be passed by address to log message queue. Using constant string literals is appropriate.

Return values

0	on success
-1	on (out of memory) error

vlc_objres_clear()

void vlc_objres_clear

(

vlc_object_t *

obj

)

Releases all resources of an object.

All resources added with vlc_objres_add() are released in reverse order. The resource list is reset to empty.

Parameters

obj	object whose resources to release

References container_of, vlc_res::payload, vlc_res::release, and vlc_objres_pop().

Referenced by demux_Probe(), generic_start(), module_unneed(), tls_client_load(), tls_server_load(), vlc_decoder_device_Create(), vlc_decoder_device_Release(), vlc_gl_Release(), vlc_gl_start(), vlc_tls_ClientDelete(), vlc_tls_ServerDelete(), vout_display_Delete(), vout_display_New(), vout_display_start(), vout_window_Delete(), and vout_window_start().

vlc_objres_new()

void* vlc_objres_new	(	size_t	size,
		void(*)(void *)	release
	)

Allocates an object resource.

Parameters

size	storage size in bytes of the resource data
release	callback to release the resource

Returns

a pointer to the (uninitialized) storage space, or NULL on error

References add_overflow, vlc_res::payload, vlc_res::release, and unlikely.

Referenced by vlc_obj_malloc().

vlc_objres_push()

void vlc_objres_push	(	vlc_object_t *	obj,
		void *	data
	)

Pushes an object resource on the object resources stack.

Parameters

obj	object to allocate the resource for
data	resource base address (as returned by vlc_objres_new())

References container_of, vlc_res::payload, vlc_res::prev, and vlc_obj_res().

Referenced by vlc_obj_malloc().

vlc_objres_remove()

void vlc_objres_remove	(	vlc_object_t *	obj,
		void *	data,
		bool(*)(void *, void *)	match
	)

Releases one object resource explicitly.

If a resource associated with an object needs to be released explicitly earlier than normal, call this function. This is relatively slow and should be avoided.

Parameters

obj	object whose resource to release
data	private data for the comparison function
match	comparison function to match the targeted resource

References vlc_res::payload, vlc_res::prev, vlc_res::release, and vlc_obj_res().

Referenced by vlc_obj_free().

vlc_set_priority()

int vlc_set_priority	(	vlc_thread_t	,
		int
	)

References VLC_EGENERIC, and VLC_SUCCESS.

Referenced by Run().

vlc_threads_setup()

void vlc_threads_setup

(

libvlc_int_t *

)

References ABOVE_NORMAL_PRIORITY_CLASS, mdate_default(), mdate_selected, msg_Dbg, SelectClockSource(), var_InheritBool(), and VLC_OBJECT.

Referenced by libvlc_InternalInit(), and mdate_default().

vlc_trace()

void vlc_trace	(	const char *	fn,
		const char *	file,
		unsigned	line
	)

Print a backtrace to the standard error for debugging purpose.

References ARRAY_SIZE, and fsync().

Referenced by vlc_thread_fatal().

Variable Documentation

psz_vlc_changeset

const char psz_vlc_changeset[]

Referenced by Version(), and vlc_LogSpam().
