Interface

VLC user interfaces. More...

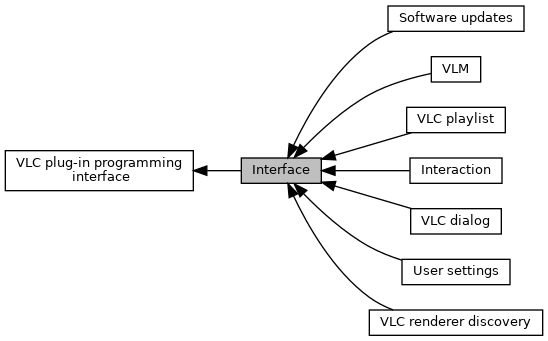

Collaboration diagram for Interface:

Modules
	User settings
	VLC provides a simple name-value dictionary for user settings.
	VLC dialog
	Interaction
	Interaction between user and modules.
	VLC playlist
	A VLC playlist contains a list of "playlist items".
	VLC renderer discovery
	Software updates
	Over-the-air VLC software updates.
	VLM
	VLC stream manager.

Files
file	vlc_interface.h
	VLC user interface modules.

Data Structures
struct	intf_thread_t
	Describe all interface-specific data of the interface thread. More...
struct	intf_dialog_args_t
	Arguments passed to a dialogs provider This describes the arguments passed to the dialogs provider. More...

Macros
#define	INTF_ABOUT_MSG   LICENSE_MSG
#define	EXTENSIONS_AUDIO_CSV
#define	EXTENSIONS_VIDEO_CSV
#define	EXTENSIONS_AUDIO
#define	EXTENSIONS_VIDEO
#define	EXTENSIONS_PLAYLIST   "*.asx;*.b4s;*.cue;*.ifo;*.m3u;*.m3u8;*.pls;*.ram;*.rar;*.sdp;*.vlc;*.xspf;*.wax;*.wvx;*.zip;*.conf"
#define	EXTENSIONS_MEDIA
#define	EXTENSIONS_SUBTITLE

Typedefs
typedef struct intf_sys_t	intf_sys_t
typedef struct intf_thread_t	intf_thread_t
	Describe all interface-specific data of the interface thread. More...
typedef enum vlc_intf_dialog	vlc_intf_dialog

Enumerations
enum	vlc_intf_dialog {   INTF_DIALOG_FILE_SIMPLE = 1, INTF_DIALOG_FILE, INTF_DIALOG_DISC, INTF_DIALOG_NET,   INTF_DIALOG_CAPTURE, INTF_DIALOG_SAT, INTF_DIALOG_DIRECTORY, INTF_DIALOG_STREAMWIZARD,   INTF_DIALOG_WIZARD, INTF_DIALOG_PLAYLIST, INTF_DIALOG_MESSAGES, INTF_DIALOG_FILEINFO,   INTF_DIALOG_PREFS, INTF_DIALOG_BOOKMARKS, INTF_DIALOG_EXTENDED, INTF_DIALOG_RENDERER,   INTF_DIALOG_POPUPMENU = 20, INTF_DIALOG_AUDIOPOPUPMENU, INTF_DIALOG_VIDEOPOPUPMENU, INTF_DIALOG_MISCPOPUPMENU,   INTF_DIALOG_FILE_GENERIC = 30, INTF_DIALOG_INTERACTION = 50, INTF_DIALOG_SENDKEY = 51, INTF_DIALOG_UPDATEVLC = 90,   INTF_DIALOG_VLM, INTF_DIALOG_EXIT = 99 }

Functions
int	intf_Create (libvlc_int_t *, const char *)
	Create and start an interface. More...
void	libvlc_Quit (libvlc_int_t *)
	Posts an exit signal to LibVLC instance. More...
vlc_playlist_t *	vlc_intf_GetMainPlaylist (intf_thread_t *intf)
	Recover the main playlist from an interface module. More...

Detailed Description

VLC user interfaces.

Macro Definition Documentation

EXTENSIONS_AUDIO

#define EXTENSIONS_AUDIO

EXTENSIONS_AUDIO_CSV

#define EXTENSIONS_AUDIO_CSV

Value:

"3ga", "669", "a52", "aac", "ac3", "adt", "adts", "aif", "aifc", "aiff", \
                         "amb", "amr", "aob", "ape", "au", "awb", "caf", "dts", "dsf", "dff", "flac", "it", "kar", \
                         "m4a", "m4b", "m4p", "m5p", "mka", "mlp", "mod", "mpa", "mp1", "mp2", "mp3", "mpc", "mpga", "mus", \
                         "oga", "ogg", "oma", "opus", "qcp", "ra", "rmi", "s3m", "sid", "spx", "tak", "thd", "tta", \
                         "voc", "vqf", "w64", "wav", "wma", "wv", "xa", "xm"

EXTENSIONS_MEDIA

#define EXTENSIONS_MEDIA

Value:

EXTENSIONS_VIDEO ";" EXTENSIONS_AUDIO ";" \
                          EXTENSIONS_PLAYLIST

EXTENSIONS_PLAYLIST

#define EXTENSIONS_PLAYLIST   "*.asx;*.b4s;*.cue;*.ifo;*.m3u;*.m3u8;*.pls;*.ram;*.rar;*.sdp;*.vlc;*.xspf;*.wax;*.wvx;*.zip;*.conf"

EXTENSIONS_SUBTITLE

#define EXTENSIONS_SUBTITLE

Value:

"*.cdg;*.idx;*.srt;" \
                            "*.sub;*.utf;*.ass;" \
                            "*.ssa;*.aqt;" \
                            "*.jss;*.psb;" \
                            "*.rt;*.sami;*.smi;*.txt;" \
                            "*.smil;*.stl;*.usf;" \
                            "*.dks;*.pjs;*.mpl2;*.mks;" \
                            "*.vtt;*.tt;*.ttml;*.dfxp;" \
                            "*.scc"

EXTENSIONS_VIDEO

#define EXTENSIONS_VIDEO

Value:

"*.3g2;*.3gp;*.3gp2;*.3gpp;*.amv;*.asf;*.avi;*.bik;*.bin;*.crf;*.dav;*.divx;*.drc;*.dv;*.dvr-ms;*.evo;*.f4v;*.flv;*.gvi;*.gxf;*.iso;*.m1v;*.m2v;" \
                         "*.m2t;*.m2ts;*.m4v;*.mkv;*.mov;*.mp2;*.mp2v;*.mp4;*.mp4v;*.mpe;*.mpeg;*.mpeg1;" \
                         "*.mpeg2;*.mpeg4;*.mpg;*.mpv2;*.mts;*.mtv;*.mxf;*.mxg;*.nsv;*.nuv;" \
                         "*.ogg;*.ogm;*.ogv;*.ogx;*.ps;" \
                         "*.rec;*.rm;*.rmvb;*.rpl;*.thp;*.tod;*.tp;*.ts;*.tts;*.txd;*.vob;*.vro;*.webm;*.wm;*.wmv;*.wtv;*.xesc"

EXTENSIONS_VIDEO_CSV

#define EXTENSIONS_VIDEO_CSV

Value:

"3g2", "3gp", "3gp2", "3gpp", "amv", "asf", "avi", "bik", "crf", "dav", "divx", "drc", "dv", "dvr-ms" \
                             "evo", "f4v", "flv", "gvi", "gxf", "iso", \
                             "m1v", "m2v", "m2t", "m2ts", "m4v", "mkv", "mov",\
                             "mp2", "mp2v", "mp4", "mp4v", "mpe", "mpeg", "mpeg1", \
                             "mpeg2", "mpeg4", "mpg", "mpv2", "mts", "mtv", "mxf", "mxg", "nsv", "nuv", \
                             "ogg", "ogm", "ogv", "ogx", "ps", \
                             "rec", "rm", "rmvb", "rpl", "thp", "tod", "ts", "tts", "txd", "vob", "vro", \
                             "webm", "wm", "wmv", "wtv", "xesc"

INTF_ABOUT_MSG

#define INTF_ABOUT_MSG   LICENSE_MSG

Typedef Documentation

intf_sys_t

typedef struct intf_sys_t intf_sys_t

intf_thread_t

typedef struct intf_thread_t intf_thread_t

Describe all interface-specific data of the interface thread.

vlc_intf_dialog

typedef enum vlc_intf_dialog vlc_intf_dialog

Enumeration Type Documentation

vlc_intf_dialog

enum vlc_intf_dialog

Enumerator
INTF_DIALOG_FILE_SIMPLE
INTF_DIALOG_FILE
INTF_DIALOG_DISC
INTF_DIALOG_NET
INTF_DIALOG_CAPTURE
INTF_DIALOG_SAT
INTF_DIALOG_DIRECTORY
INTF_DIALOG_STREAMWIZARD
INTF_DIALOG_WIZARD
INTF_DIALOG_PLAYLIST
INTF_DIALOG_MESSAGES
INTF_DIALOG_FILEINFO
INTF_DIALOG_PREFS
INTF_DIALOG_BOOKMARKS
INTF_DIALOG_EXTENDED
INTF_DIALOG_RENDERER
INTF_DIALOG_POPUPMENU
INTF_DIALOG_AUDIOPOPUPMENU
INTF_DIALOG_VIDEOPOPUPMENU
INTF_DIALOG_MISCPOPUPMENU
INTF_DIALOG_FILE_GENERIC
INTF_DIALOG_INTERACTION
INTF_DIALOG_SENDKEY
INTF_DIALOG_UPDATEVLC
INTF_DIALOG_VLM
INTF_DIALOG_EXIT

Function Documentation

intf_Create()

int intf_Create	(	libvlc_int_t *	libvlc,
		const char *	chain
	)

Create and start an interface.

Parameters

playlist	playlist and parent object for the interface
chain	configuration chain string

Returns

VLC_SUCCESS or an error code

References _, AddIntfCallback(), config_ChainCreate(), config_ChainDestroy(), libvlc_priv_t::interfaces, libvlc_GetMainPlaylist(), libvlc_priv(), libvlc_priv_t::lock, module_need, module_unneed, msg_Err, intf_thread_t::p_cfg, intf_thread_t::p_module, intf_thread_t::p_next, vlc_value_t::psz_string, unlikely, var_AddCallback(), var_Change(), var_Create(), vlc_custom_create, VLC_EGENERIC, VLC_ENOMEM, vlc_mutex_lock(), vlc_mutex_unlock(), vlc_object_delete, VLC_SUCCESS, VLC_VAR_ADDCHOICE, VLC_VAR_ISCOMMAND, VLC_VAR_SETTEXT, and VLC_VAR_STRING.

Referenced by AddIntfCallback(), and libvlc_InternalAddIntf().

libvlc_Quit()

void libvlc_Quit

(

libvlc_int_t *

p_libvlc

)

Posts an exit signal to LibVLC instance.

This function should only be called on behalf of the user.

References libvlc_priv_t::exit, vlc_exit::handler, libvlc_priv(), vlc_exit::lock, msg_Dbg, vlc_exit::opaque, vlc_mutex_lock(), and vlc_mutex_unlock().

Referenced by update_DownloadReal(), and vlc_player_input_HandleState().

vlc_intf_GetMainPlaylist()

vlc_playlist_t* vlc_intf_GetMainPlaylist

(

intf_thread_t *

intf

)

Recover the main playlist from an interface module.

Returns

the main playlist (can't be NULL)

References libvlc_GetMainPlaylist(), and vlc_object_instance.
