VLC user interface modules. More...

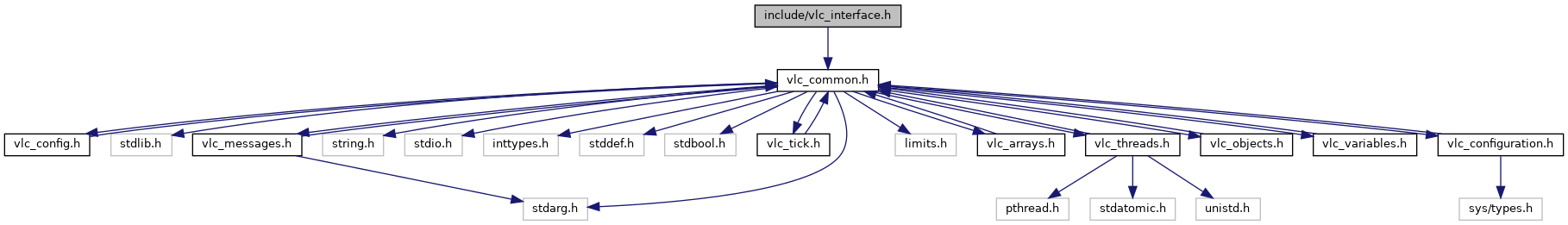

Include dependency graph for vlc_interface.h:

Data Structures
struct	intf_thread_t
	Describe all interface-specific data of the interface thread. More...

struct	intf_dialog_args_t
	Arguments passed to a dialogs provider This describes the arguments passed to the dialogs provider. More...

struct	interaction_dialog_t
	This structure describes a piece of interaction with the user. More...

Macros
#define	INTF_ABOUT_MSG LICENSE_MSG

#define	EXTENSIONS_AUDIO_CSV

#define	EXTENSIONS_VIDEO_CSV

#define	EXTENSIONS_AUDIO

#define	EXTENSIONS_VIDEO

#define	EXTENSIONS_PLAYLIST ".asx;.b4s;.cue;.ifo;.m3u;.m3u8;.pls;.ram;.rar;.sdp;.vlc;.xspf;.wax;.wvx;.zip;.conf"

#define	EXTENSIONS_MEDIA

#define	EXTENSIONS_SUBTITLE

#define	DIALOG_GOT_ANSWER 0x01
	Possible flags . More...

#define	DIALOG_YES_NO_CANCEL 0x02

#define	DIALOG_LOGIN_PW_OK_CANCEL 0x04

#define	DIALOG_PSZ_INPUT_OK_CANCEL 0x08

#define	DIALOG_BLOCKING_ERROR 0x10

#define	DIALOG_NONBLOCKING_ERROR 0x20

#define	DIALOG_USER_PROGRESS 0x80

#define	DIALOG_INTF_PROGRESS 0x100

#define	intf_UserStringInput(a, b, c, d) (VLC_OBJECT(a),b,c,d, VLC_EGENERIC)

#define	interaction_Register(t) (t, VLC_EGENERIC)

#define	interaction_Unregister(t) (t, VLC_EGENERIC)

Typedefs
typedef struct vlc_playlist	vlc_playlist_t

typedef struct intf_dialog_args_t	intf_dialog_args_t

typedef struct intf_sys_t	intf_sys_t

typedef struct intf_thread_t	intf_thread_t
	Describe all interface-specific data of the interface thread. More...

typedef enum vlc_intf_dialog	vlc_intf_dialog

typedef struct interaction_dialog_t	interaction_dialog_t
	This structure describes a piece of interaction with the user. More...

Enumerations
enum	vlc_intf_dialog { INTF_DIALOG_FILE_SIMPLE = 1, INTF_DIALOG_FILE, INTF_DIALOG_DISC, INTF_DIALOG_NET, INTF_DIALOG_CAPTURE, INTF_DIALOG_SAT, INTF_DIALOG_DIRECTORY, INTF_DIALOG_STREAMWIZARD, INTF_DIALOG_WIZARD, INTF_DIALOG_PLAYLIST, INTF_DIALOG_MESSAGES, INTF_DIALOG_FILEINFO, INTF_DIALOG_PREFS, INTF_DIALOG_BOOKMARKS, INTF_DIALOG_EXTENDED, INTF_DIALOG_RENDERER, INTF_DIALOG_POPUPMENU = 20, INTF_DIALOG_AUDIOPOPUPMENU, INTF_DIALOG_VIDEOPOPUPMENU, INTF_DIALOG_MISCPOPUPMENU, INTF_DIALOG_FILE_GENERIC = 30, INTF_DIALOG_INTERACTION = 50, INTF_DIALOG_SENDKEY = 51, INTF_DIALOG_UPDATEVLC = 90, INTF_DIALOG_VLM, INTF_DIALOG_EXIT = 99 }

enum	{ DIALOG_OK_YES, DIALOG_NO, DIALOG_CANCELLED }
	Possible return codes. More...

enum	{ ANSWERED_DIALOG, DESTROYED_DIALOG }
	Possible status. More...

enum	{ INTERACT_NEW, INTERACT_UPDATE, INTERACT_HIDE, INTERACT_DESTROY }
	Possible actions. More...

Functions
int	intf_Create (libvlc_int_t , const char )
	Create and start an interface. More...

void	libvlc_Quit (libvlc_int_t *)
	Posts an exit signal to LibVLC instance. More...

vlc_playlist_t *	vlc_intf_GetMainPlaylist (intf_thread_t *intf)
	Recover the main playlist from an interface module. More...


void	vlc_LogSet (libvlc_int_t , const struct vlc_logger_operations , void *data)
	Sets the message logging callback. More...

Detailed Description

VLC user interface modules.

Typedef Documentation
