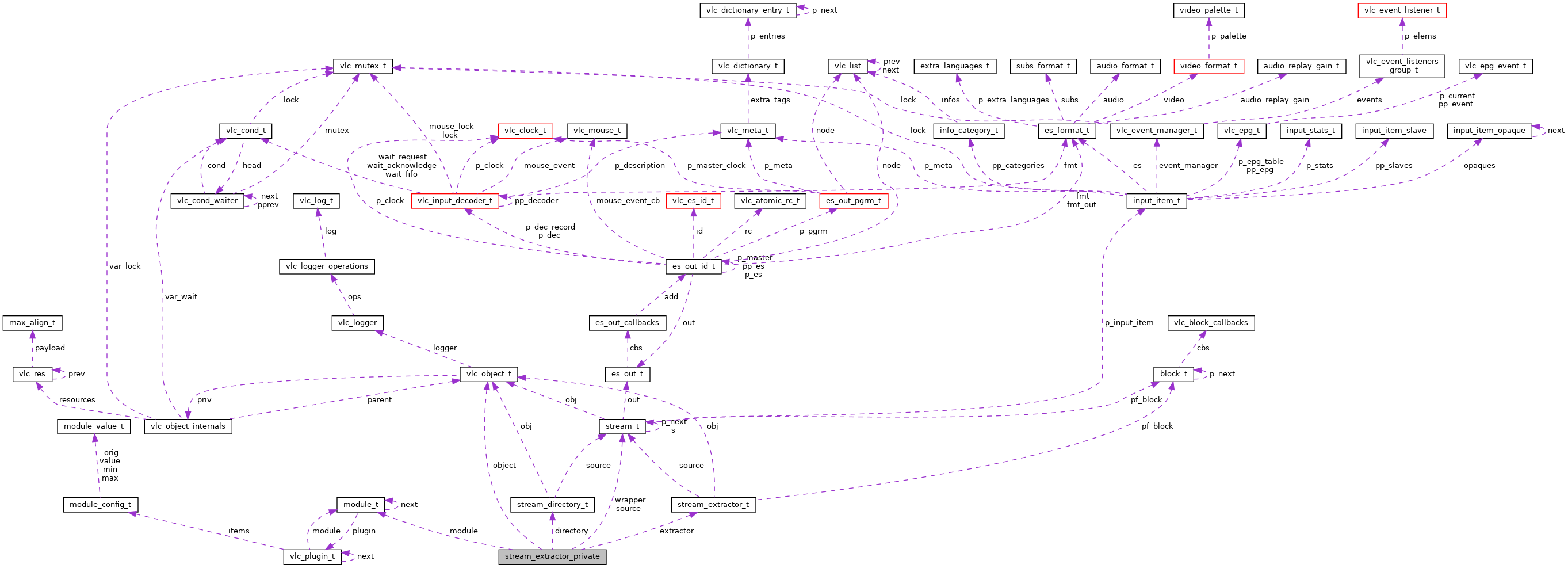

Collaboration diagram for stream_extractor_private:

[legend]

Data Fields
union {
stream_extractor_t extractor

stream_directory_t directory

};

int(*	pf_init )(struct stream_extractor_private , stream_t )
	Callback to handle initialization. More...

void(*	pf_clean )(struct stream_extractor_private *)
	Callback to handle clean-up. More...

stream_t *	wrapper
	the wrapping stream_t used to access the underlying stream-extractor More...

stream_t *	source
	the source stream consumed by the stream-extractor More...

module_t *	module
	the stream-extractor module More...

vlc_object_t *	object
	the underlying stream-extractor object More...

Field Documentation

◆ @50

union { ... }

◆ directory

stream_directory_t stream_extractor_private::directory

Referenced by se_InitDirectory(), se_ReadDir(), and StreamExtractorAttach().

◆ extractor

stream_extractor_t stream_extractor_private::extractor

Referenced by se_CleanStream(), se_InitStream(), se_StreamBlock(), se_StreamControl(), se_StreamRead(), se_StreamSeek(), and StreamExtractorAttach().

◆ module

module_t* stream_extractor_private::module

the stream-extractor module

Referenced by se_Release(), and StreamExtractorAttach().

◆ object

vlc_object_t* stream_extractor_private::object

the underlying stream-extractor object

Referenced by se_Release(), and StreamExtractorAttach().

◆ pf_clean

void(* stream_extractor_private::pf_clean) (struct stream_extractor_private *)

Callback to handle clean-up.

pf_clean, unless NULL, will be called when the stream-extractor is to be destroyed, and shall be used to clean-up resources (acquired during initialization, see pf_init).

Referenced by se_Release(), and StreamExtractorAttach().

◆ pf_init

int(* stream_extractor_private::pf_init) (struct stream_extractor_private *, stream_t *)

Callback to handle initialization.

pf_init will be called after successful module probing to initialize the relevant members of the underlying stream-extractor object, as well as the wrapping stream.

Referenced by se_AttachWrapper(), and StreamExtractorAttach().
